NXLog User Guide

85. SafeNet KeySecure

SafeNet KeySecure devices are capable of sending their logs to a remote Syslog destination via UDP or TCP. KeySecure has four different logs: System, Audit, Activity, and Client Event. Each one has a slightly different format, and each can be configured with up to two Syslog servers. There is also an option to sign and encrypt logs messages before sending them to the remote destination. Configuration for this type of scenario is outside of the scope of this section.

Sample Audit Message

2017-03-26 18:12:04 [admin] [Login] [CLI]: Logged out from 192.168.15.231 via SSH

In case of a cluster with two or more KeySecure devices, the configuration change on one of them will be replicated to other members. Each member will be sending logs separately. For more details regarding logging configuration on SafeNet KeySecure, refer to the KeySecure Appliance User Guide.

Note	This section covers configuration for sending logs via UDP. To use TCP instead, just select it instead where appropriate.

Configure NXLog for receiving Syslog logs (see the examples below). Then restart NXLog.
Make sure the NXLog agent is accessible from the KeySecure device.
Configure Syslog logging on KeySecure using either the web interface or the command line. See the following sections.

Note	The steps in the following sections have been tested on KeySecure 460 and should work on other models also.

Example 363. Receiving Logs From KeySecure

This example shows a KeySecure Audit log message as received and processed by NXLog. Use the im_tcp module instead of im_udp to receive Syslog messages via TCP instead.

nxlog.conf


  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

  <Extension _syslog>
    Module  xm_syslog
</Extension>

<Extension _json>
    Module  xm_json
</Extension>

<Input in_syslog_udp>
    Module  im_udp
    Host    0.0.0.0
    Port    514
    Exec    parse_syslog();
</Input>

<Output file>
    Module  om_file
    File    "/var/log/keysecure.log"
    Exec    to_json();
</Output>

Output Sample

{
  "MessageSourceAddress": "192.168.5.20",
  "EventReceivedTime": "2017-03-26 18:11:36",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 17,
  "SyslogFacility": "LOCAL1",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "Hostname": "p-keysecure1",
  "EventTime": "2017-03-26 18:12:26",
  "SourceName": "IngrianAudit",
  "Message": "2017-03-26 18:12:26 [admin] [Login] [CLI]: Logged in from 192.168.15.231 via SSH"
}

Example 364. Extracting Additional Fields

Additional field extraction can also be configured. Note that this depends on which particular log the message is coming from, as each has a different format.

nxlog.conf


  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

  <Input in_syslog_udp>
    Module  im_udp
    Host    0.0.0.0
    Port    514
    <Exec>
        parse_syslog();
        if $Message =~ /(?x)^\d{4}-\d{2}-\d{2}\ \d{2}:\d{2}:\d{2}\ \[([a-zA-Z]*)\]
                        \ \[([a-zA-Z]*)\]\ \[([a-zA-Z]*)\]:\ (.*)$/
        {
            $KSUsername = $1;
            $KSEvent = $2;
            $KSSubsys = $3;
            $KSMessage = $4;
        }
    </Exec>
</Input>

Output Sample

{
  "MessageSourceAddress": "192.168.5.20",
  "EventReceivedTime": "2017-04-15 19:14:59",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 17,
  "SyslogFacility": "LOCAL1",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "Hostname": "p-keysecure1",
  "EventTime": "2017-04-15 19:16:29",
  "SourceName": "IngrianAudit",
  "Message": "2017-04-15 19:16:29 [admin] [Login] [CLI]: Logged in from 192.168.15.231 via SSH",
  "KSUsername": "admin",
  "KSEvent": "Login",
  "KSSubsys": "CLI",
  "KSMessage": "Logged in from 192.168.15.231 via SSH"
}

85.1. Configuring via the Web Interface

Log in to the KeySecure Management Console.

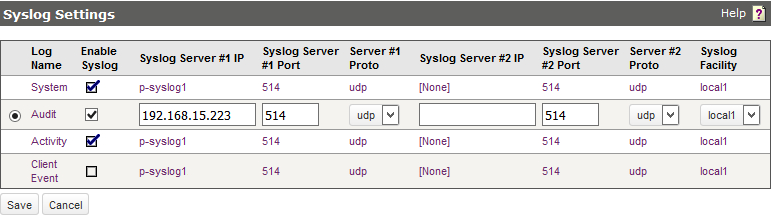

Go to Device › Logs & Statistics › Log Configuration › Rotation & Syslog.
Select a log type and click Edit to change the settings.
Select the Enable Syslog option and specify the required IP addresses, ports, protocols, and facility for up to two servers.
Click Save.
Repeat for the other log types as required.

85.2. Configuring via the Command Line

Run the following commands. Follow the prompts to enable remote syslog with the required IP addresses, ports, protocols, and facility for up to two servers.

# configure
# system syslog
# audit syslog
# activity syslog
# clientevent syslog

Example 365. Forwarding System Logs

The following commands enable sending System logs to 192.168.6.43 via UDP port 514.

p-keysecure1# configure
p-keysecure1 (config)# system syslog
Enable Syslog [y]:
Syslog Server #1 IP: 192.168.6.143
Syslog Server #1 Port [514]:
Server #1 Proto:
        1: udp
        2: tcp
Enter a number (1 - 2) [1]:
Syslog Server #2 IP:
Syslog Server #2 Port [514]:
Server #2 Proto:
        1: udp
        2: tcp
Enter a number (1 - 2) [1]:
Syslog Facility:
        1: local0
        2: local1
        3: local2
        4: local3
        5: local4
        6: local5
        7: local6
        8: local7
Enter a number (1 - 8) [2]:
System Log syslog settings successfully saved.  Syslog is enabled.
Warning: The syslog protocol insecurely transfers logs in cleartext
