53. Dell EqualLogic

Dell EqualLogic SAN systems are capable of sending logs to a remote Syslog destination via UDP.

In most environments, two or more EqualLogic units are configured as a single group. This allows storage capacity to be utilized from all devices, and the configuration of RAID levels across multiple drives and hardware platforms. In this case, Syslog configuration is performed from Group Manager and applies to all members.

Log Sample From a Group
AUDIT   grpadmin        18-Mar-2017 20:13:01.508144 lab-array1 :CLI: Login to account grpadmin succeeded, using local authentication. User privilege is group-admin.
AUDIT   grpadmin        18-Mar-2017 20:35:51.833836 lab-array1 :User action:volume select volume1 schedule create test type once start-time 06:30PM read-write max-keep 10 start-date 03/18/17 enable
11501:9173:lab-array1:MgmtExec:18-Mar-2017 20:39:12.115208:snapshotDelete.cc:446:INFO:8.2.5:Successfully deleted snapshot volume1-2017-03-18-20:38:00.3.1.

For more details about configuring logging on Dell EqualLogic PS series SANs, check the "Dell PS Series Configuration Guide" which can be downloaded from the Dell EqualLogic Support Site (a valid account is required).

Note
 The steps below have been tested with a Dell EqualLogic PS6000 series SAN.

  1. Configure NXLog for receiving Syslog messages via UDP (see the examples below). Then restart NXLog.

  2. Make sure the NXLog agent is accessible from all devices in the group.

  3. Proceed with the logging configuration on EqualLogic, using either the Group Manager or the command line. See the following sections.

Example 220. Receiving Logs From EqualLogic

The following example shows EqualLogic logs as received and processed by NXLog with the im_udp and xm_syslog modules.

nxlog.conf [Download file]


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20



<Extension _syslog>
    Module  xm_syslog
</Extension>

<Extension _json>
    Module  xm_json
</Extension>

<Input in_syslog_udp>
    Module  im_udp
    Host    0.0.0.0
    Port    514
    Exec    parse_syslog();
</Input>

<Output file>
    Module  om_file
    File    "/var/log/equallogic.log"
    Exec    to_json();
</Output>
Output Sample
{
  "MessageSourceAddress": "192.168.10.43",
  "EventReceivedTime": "2017-03-18 21:12:58",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 16,
  "SyslogFacility": "LOCAL0",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "EventTime": "2017-03-18 21:12:58",
  "Hostname": "192.168.10.43",
  "SourceName": "11517",
  "Message": "380:netmgtd:18-Mar-2017 21:13:19.415464:rcc_util.c:1032:AUDIT:grpadmin:25.7.0:CLI: Login to account grpadmin succeeded, using local authentication. User privilege is group-admin."
}
{
  "MessageSourceAddress": "192.168.10.43",
  "EventReceivedTime": "2017-03-18 20:35:31",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 16,
  "SyslogFacility": "LOCAL0",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "EventTime": "2017-03-18 20:35:31",
  "Hostname": "192.168.10.43",
  "SourceName": "11470",
  "Message": "88:agent:18-Mar-2017 20:35:51.833836:echoCli.c:10611:AUDIT:grpadmin:22.7.0:User action:volume select volume1 schedule create test type once start-time 06:30PM read-write max-keep 10 start-date 03/18/17 enable"
}
{
  "MessageSourceAddress": "192.168.10.43",
  "EventReceivedTime": "2017-03-18 20:38:51",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 16,
  "SyslogFacility": "LOCAL0",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "EventTime": "2017-03-18 20:38:51",
  "Hostname": "192.168.10.43",
  "SourceName": "11502",
  "Message": "103:agent:18-Mar-2017 20:39:12.124329:echoCli.c:10611:AUDIT:grpadmin:22.7.0:User action:volume select volume1 snapshot delete volume1-2017-03-18-20:38:00.3.1 "
}
Example 221. Extracting Fields From the EqualLogic Logs

This configuration uses a regular expression to extract additional fields from each message.

nxlog.conf [Download file]


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21



<Input in_syslog_udp>
    Module  im_udp
    Host    0.0.0.0
    Port    514
    <Exec>
        parse_syslog();
        if $Message =~ /(?x)^([0-9]*):([a-z]*):\d{2}-[a-zA-Z]{3}-\d{4}
                        \ \d{2}:\d{2}:\d{2}.\d{6}:([a-zA-Z.]*):[0-9]*:([a-zA-Z]*):
                        ([a-z]*):([0-9.]*):([a-zA-Z. ]*):(.*)$/
        {
            $EQLMsgSeq = $1;
            $EQLMsgSrc = $2;
            $EQLFile = $3;
            $EQLMsgType = $4;
            $EQLAccount = $5;
            $EQLMsgID = $6;
            $EQLEvent = $7;
            $EQLMessage = $8;
        }
    </Exec>
</Input>
Output Sample
{
  "MessageSourceAddress": "192.168.10.43",
  "EventReceivedTime": "2017-04-15 16:55:48",
  "SourceModuleName": "in_syslog_udp",
  "SourceModuleType": "im_udp",
  "SyslogFacilityValue": 16,
  "SyslogFacility": "LOCAL0",
  "SyslogSeverityValue": 6,
  "SyslogSeverity": "INFO",
  "SeverityValue": 2,
  "Severity": "INFO",
  "EventTime": "2017-04-15 16:55:48",
  "Hostname": "192.168.10.43",
  "SourceName": "12048",
  "Message": "113:agent:15-Apr-2017 16:57:09.744470:echoCli.c:10611:AUDIT:grpadmin:22.7.0:User action:alerts select syslog priority fatal,error,warning,audit",
  "EQLMsgSeq": "113",
  "EQLMsgSrc": "agent",
  "EQLFile": "echoCli.c",
  "EQLMsgType": "AUDIT",
  "EQLAccount": "grpadmin",
  "EQLMsgID": "22.7.0",
  "EQLEvent": "User action",
  "EQLMessage": "alerts select syslog priority fatal,error,warning,audit"
}

53.1. Configuring via the Group Manager

  1. Log in to the Group Manager.

  2. Go to Group › Group Configuration › Notifications.

  3. Under the Event Logs section, make sure the Send events to syslog servers option is checked.

  4. Select the required Event priorities.

    Event Log priorities

  5. Click Add, enter the IP address of the NXLog agent, and click OK.

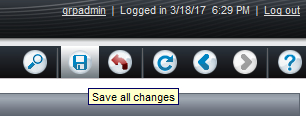

  6. Click the Save all changes button in the top left corner.

    Save all changes

53.2. Configuring via the Command Line

  1. Log in to the Group Manager via SSH.

  2. Run the following commands. Replace LEVELS with a comma-separated list of event priorities. Available options include: fatal, error, warning, info, audit, and none. Replace IP_ADDRESS and PORT with the IP address and port that the NXLog agent is listening on.

    # alerts select syslog priority LEVELS
# grpparams syslog-notify enable
# grpparams syslog-server-list IP_ADDRESS:PORT
    Example 222. Sending Logs to the Specified Host

    These commands will send all logs, except for Informational level, to 192.168.6.143 via the default UDP port 514.

    # alerts select syslog priority fatal,error,warning,audit
# grpparams syslog-notify enable
# grpparams syslog-server-list 192.168.6.143
