Sound System Design 1

By: Owen T. Heisler
Updated: 2012-10-27

This design has been deprecated. See the much-improved Design 3.

About

I designed a sound system to meet the following requirements:

  • Designed especially for speech, with tailored signal compression.
  • With complete user manual provided for users who are not audio professionals (see manual PDF below).
  • Engineered to minimize single points of failure with a fully isolated emergency signal path and a uninterruptible (battery backup) power supply.
  • Performs automatic room equalization using pink noise and a target curve.

See the user manual (PDF) for more information.

Pictures

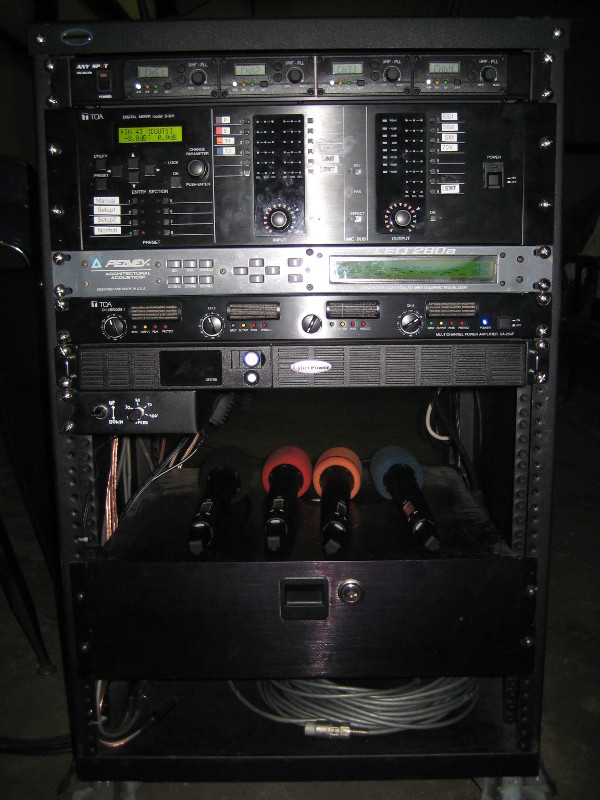

Sound system, front view

Front cover removed

Sound system, rear view

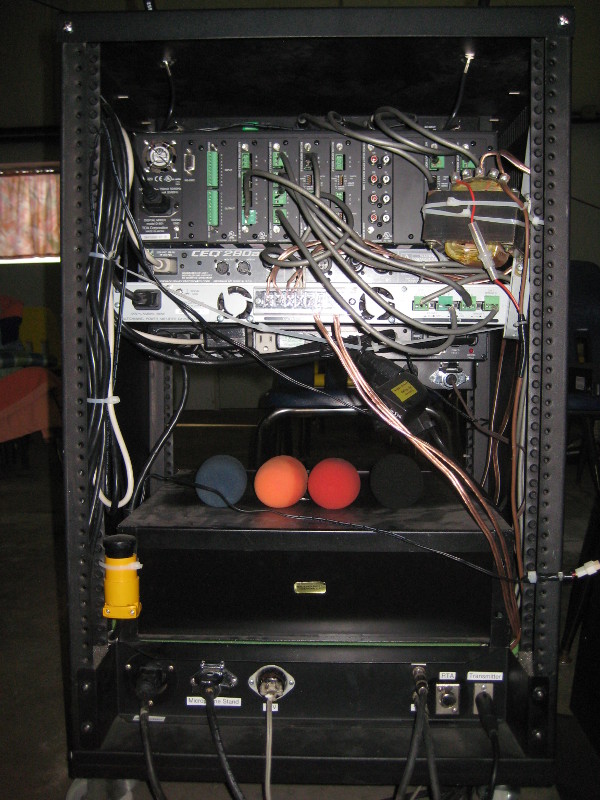

Rear cover removed
